Product Detail

Model No.: RG6 Cable

Production Capacity: 8000 Km/month

Delivery Date: 10-15 Days

Specification: FPE

Certificate: Quality Management System

Means of Transport: FOB,CIF,CNF

Packing: Carton,Roll,Wooden plate

Brand Name: Wu Yue

Function: CATV,CCTV,MATV,Satellite TV

Export Area: Developing Country

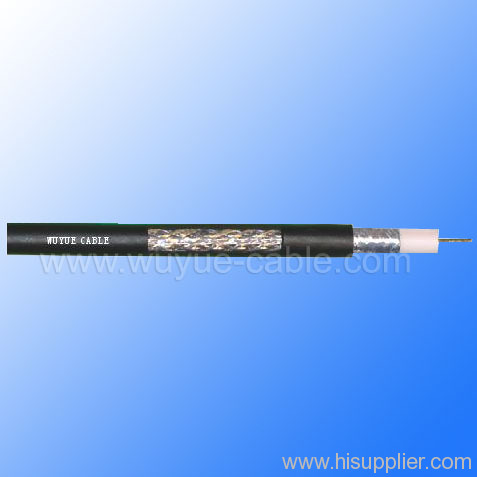

Center Conductor, Foamed PE, Al-Foil, Braiding wires, Jacket PVC

Coaxial Cable (RG6)

1) The reference standard.

1.02mmBC(or TC,CCS,CCA) + 4.60mmFoamed PE + Al-foil shield(bonded) + 60% AL Braiding + 6.9mmPVC

2)The details of note.

a) Center conductor: Tinned Copper, Bare Copper, Copper Clad Steel, and Copper Clad Aluminum are available;

b) Al-foil: Non-bonded Al-foil, bonded Al-foil, double non-bonded Al-foil, and double bonded Al-foil are available;

c) Braiding wire: Al-Ma alloy, Bare Copper, Tinned Copper, Copper Clad Steel, Copper Clad Aluminum,Tinned Copper Clad Steel, Tinned Copper Clad Aluminum are available;

d) Braiding wire diameter: 0.10mm,0.12mm,0.13mm,0.14mm,0.15mm,0.16mm are available;

e) Braiding net: 32,48,64,72,80,96,120,128,144 and more available;

f) Braiding coverage: Between 30%--97% ara available;

g) PVC jacket of Flame retardant, UV, or UL available.

3) According to the requirments of customers, we can also offer the following materials.

a) Jelly between the Braiding and PVC jacket.

b) Steel Messenger

c) Plus2 Wires

d) Composite cable include LAN cable,Telephone cable,etc(e.g. UTP-Cat-5e-4pair).

Electrical Characteristics

Impedance: 75±3Ω

Velocity of Propagation: 85%

Capacitance: 52 pF/m

Return Loss: 20 dB

Attenuation [@68°F,(20°C)] dB/100meters

5MHz:    1.90dB            500MHz: 15.09dB
55MHz:   5.25dB           600MHz: 16.73dB
83MHz: 6.40dB             750MHz: 18.54dB
187MHz: 9.35dB           1000MHz: 21.49dB
211MHz: 10.00dB         1450MHZ: 26.16dB
250MHz: 10.82dB         1800MHZ: 27.73dB
350MHz: 12.63dB         2100MHZ: 31.15dB
400MHz: 13.61dB         2250MHZ: 34.03dB

Attention:

According to the requirments of customers,we can also offer the other Electrical Characteristics.

Packing(Mainly according to the requirments of customers):

A.General Packing lengths: 30,100,200,305m/roll,100,200,300yard/roll.

B. General packing: Wooden reel,Carton box,pull out box,pallet,etc. are available.

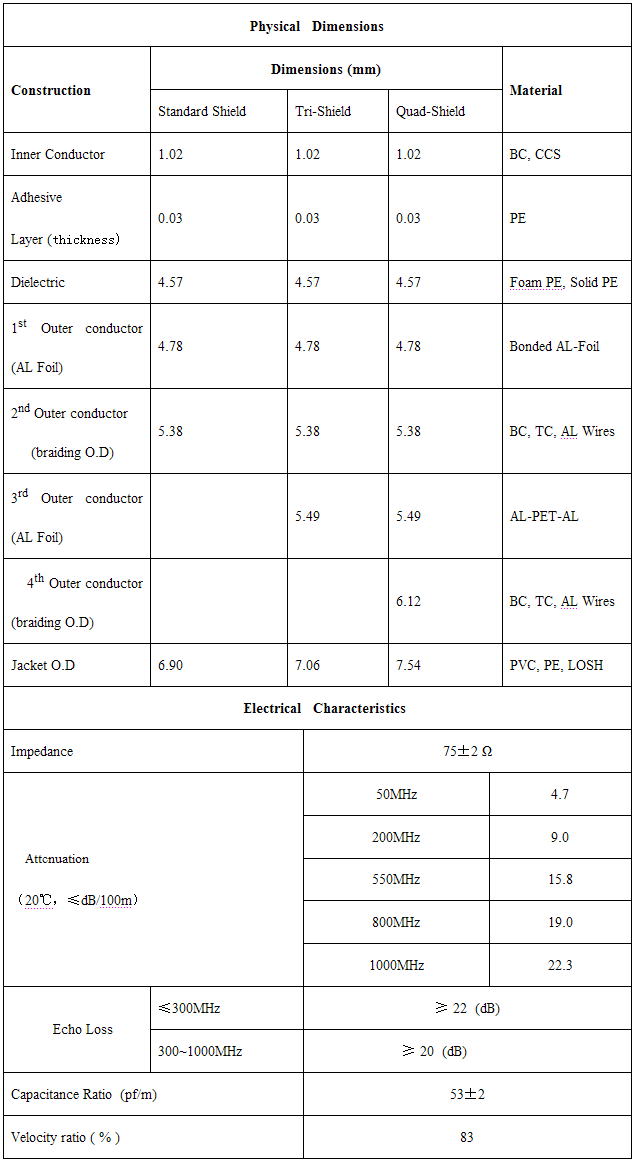

Another Reference Chart as follows
